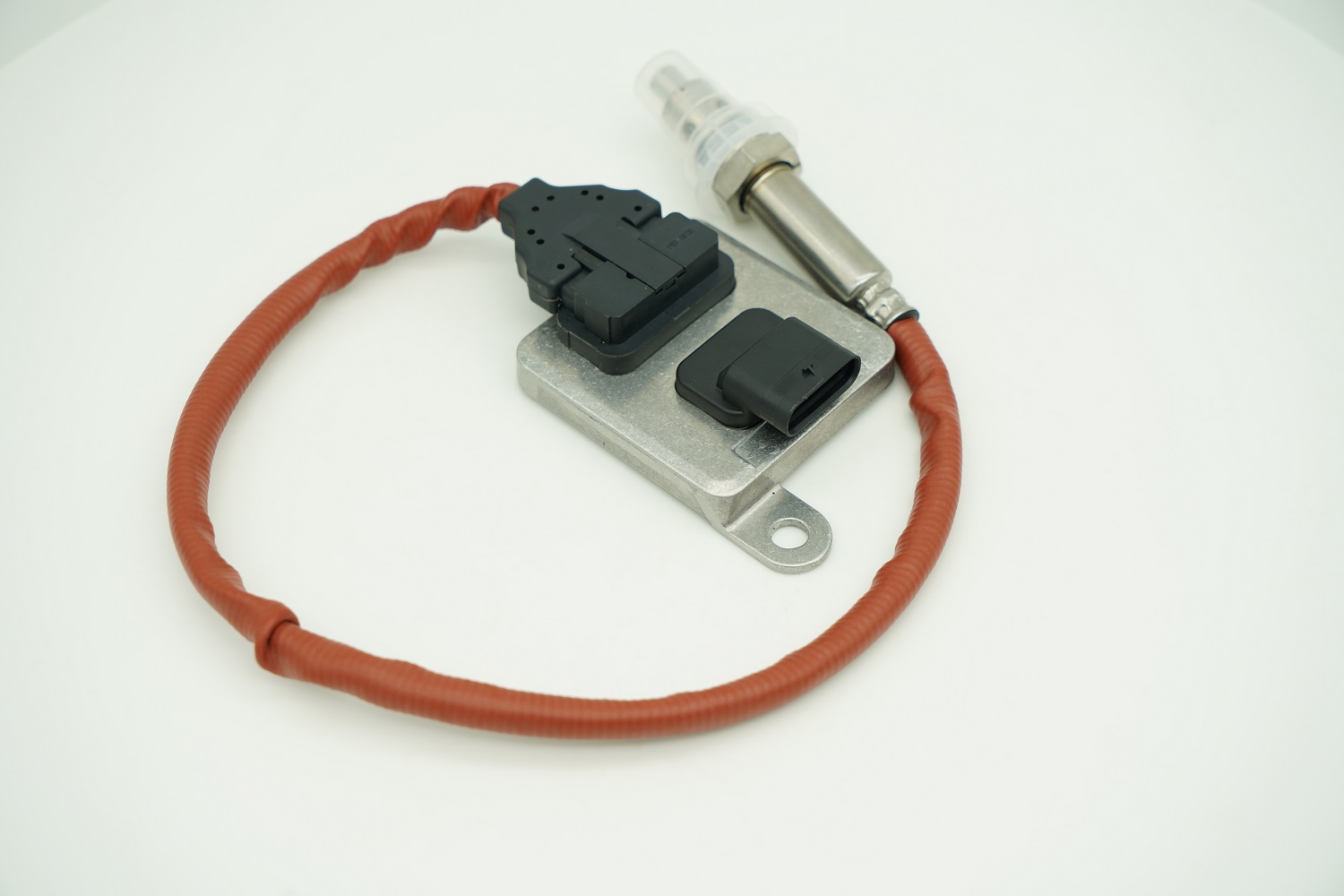

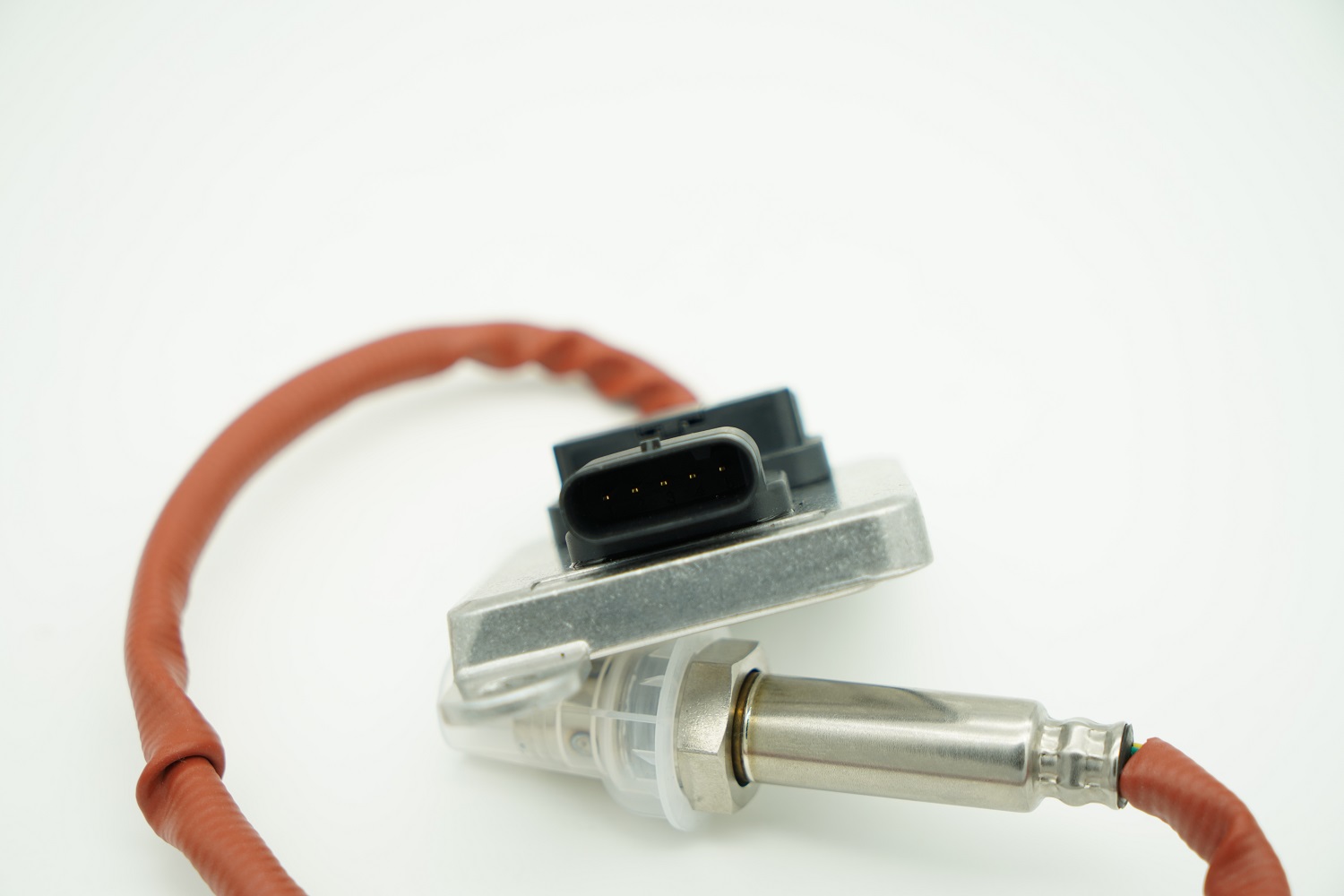

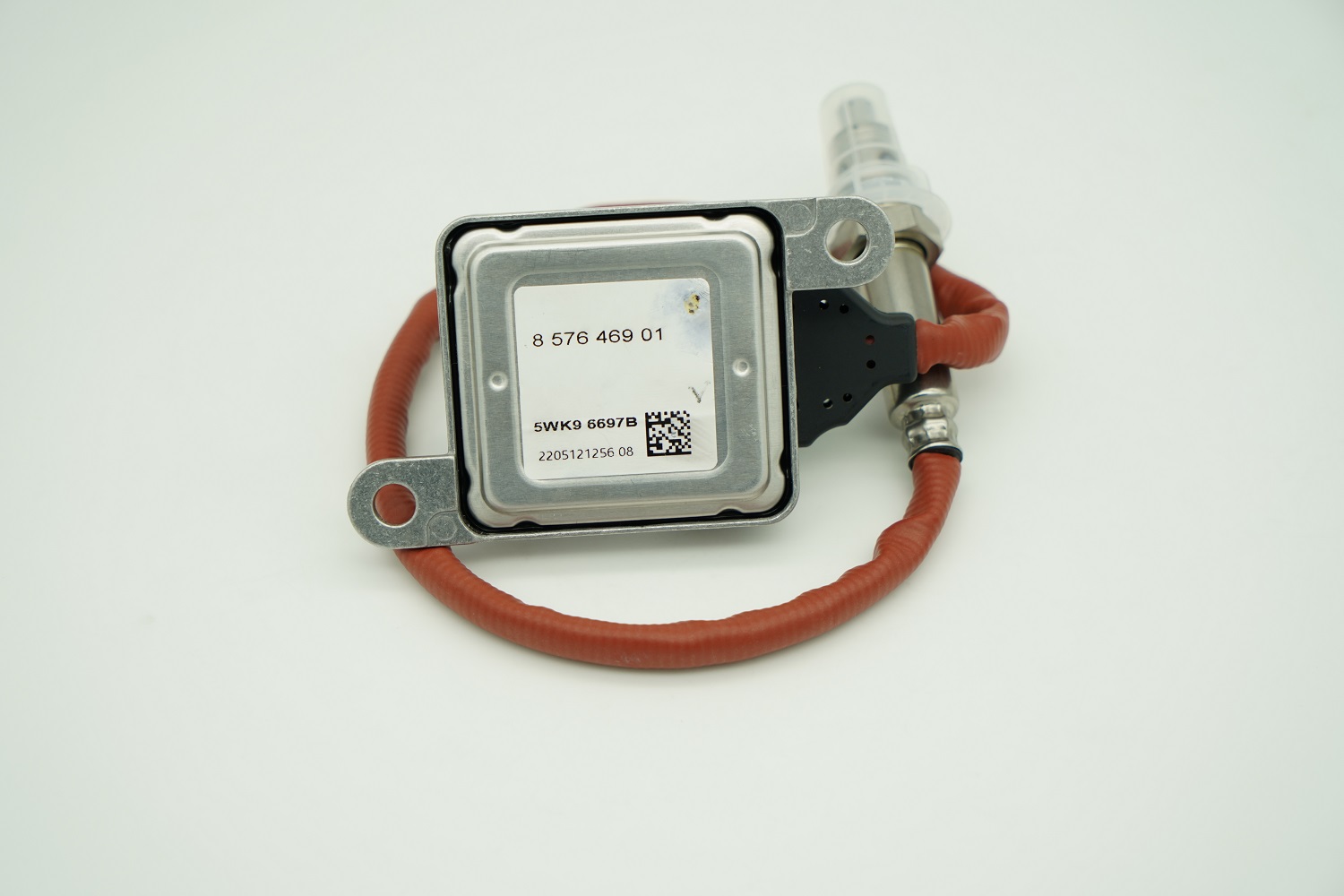

857646901-5WK96697B
The most common diagnostic trouble codes dtc
- 2AEC Nitrogen Oxide Sensor Self Diagnostics
- 2AF0; 2B05 nitric oxide sensor, heating
- 2AF2; 2B06; 2B09 nitric oxide sensor, Lambda linear
- 2AF4; 2B07; 2B0A NOx sensor, electrical
- 2AF6; 2AFB; 2B0B nitric oxide sensor, Lambda binary
- 2AF9 nox sensor, nox signal: coast mode check
- 2EAE NOx sensor message missing (timeout)
- 30D6 nitric oxide sensor, plausibility
- 30D8 NOx sensor, Sensor damaged
- 30DA NOx sensor, heating time
- 30DC nitric oxide senor, heating
- 30DE NOx sensor – Lambdaprobe before catalyst, Korrelation
- 30E0 NOx sensor, Offset
- 30E2 nitric oxide sensor, thrust test
- 30E4 nitric oxide sensor, aging
- 30E6 nitric oxide sensor, dynamics
- 25C200 Nitrogen Oxide sensor after SCR catalytic converter, signal: Open circuit
- 25C300 Nitrogen Oxide sensor after SCR catalytic converter, signal: Short circuit to ground or positive
- 2BC500 Nitrogen oxide sensor downstream of SCR catalytic converter, message: missing
- 2BC700 Nitrogen Oxide sensor downstream of SCR catalytic converter, message: missing
BMW part numbers:
- 857646901
Continental part number:
- 5WK9 6697B
- 5WK96697B
More compatible oem part numbers
- 13628589844 858984401 5WK96697C
- 13628518789 851878901 5WK96697A
- 13628511664
- 13628509719
- 13627812528 781252802 5WK96639B
- 781252801 5WK96639A
BMW compatibility list:
- 3 Series E90 LCI Facelift 2008, 2009, 2010, 2011
- 3 Series E91 LCI Facelift 2008, 2009, 2010, 2011
- 3 Series F30 LCI Facelift 2014, 2015, 2016, 2017, 2018
- 3 Series F31 LCI Facelift 2015, 2016, 2017, 2018
- 5 Series F07 GT LCI 2012, 2013, 2014, 2015, 2016, 2017
- 5 Series F10 LCI Facelift 2012, 2013, 2014, 2015, 2016
- 5 Series F11 LCI Facelift 2013, 2014, 2015, 2016, 2017
- 7 Series F01 LCI Facelift 2013, 2014, 2015
- X3 F25 2013, 2014, 2015, 2016
- X5 E70 2007, 2008, 2009, 2010
- X5 E70 LCI Facelift 2010, 2011, 2012, 2013
- X5 F15 2012, 2013, 2014, 2015, 2016, 2017, 2018
- X6 F16 2013, 2014, 2015, 2016, 2017, 2018
