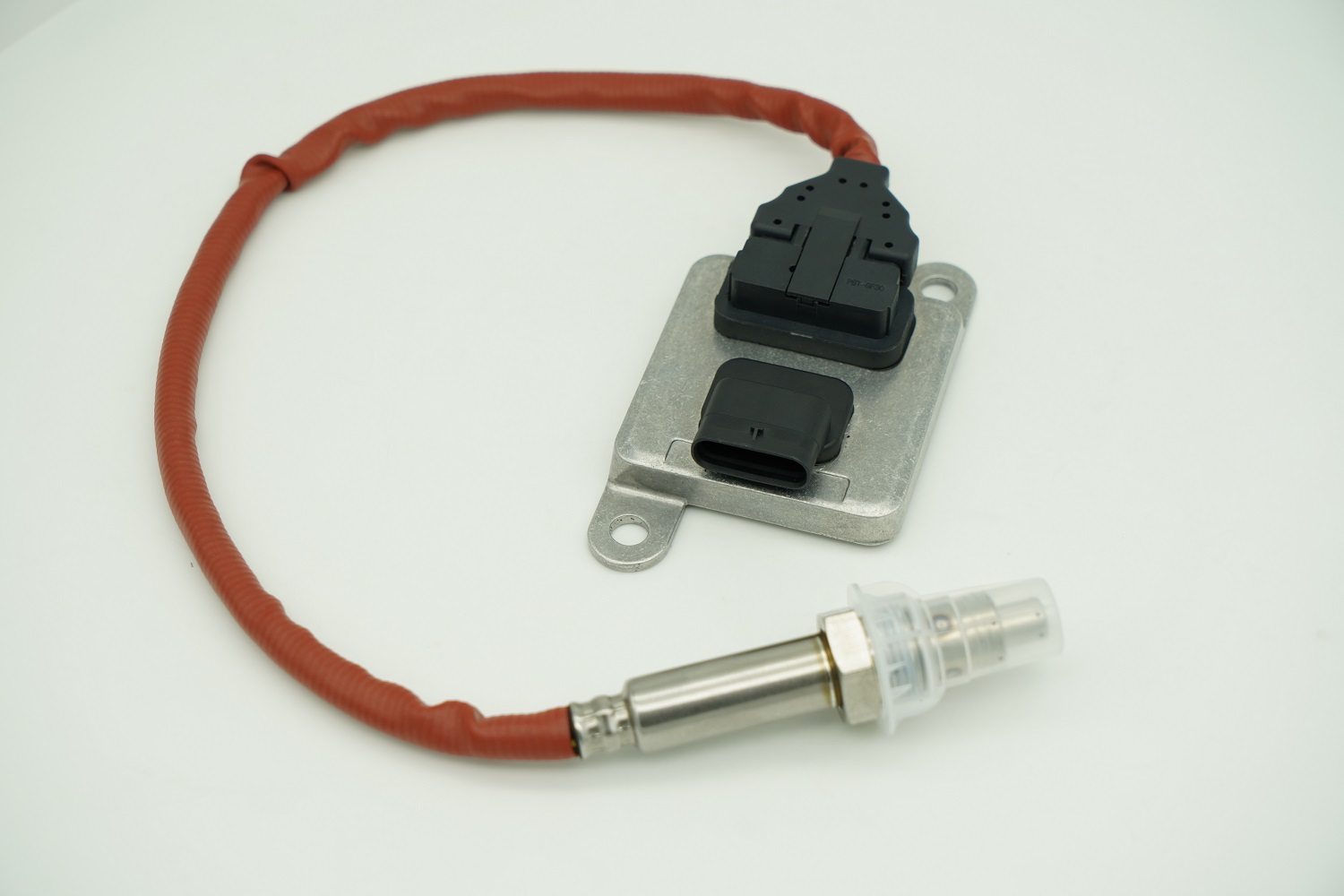

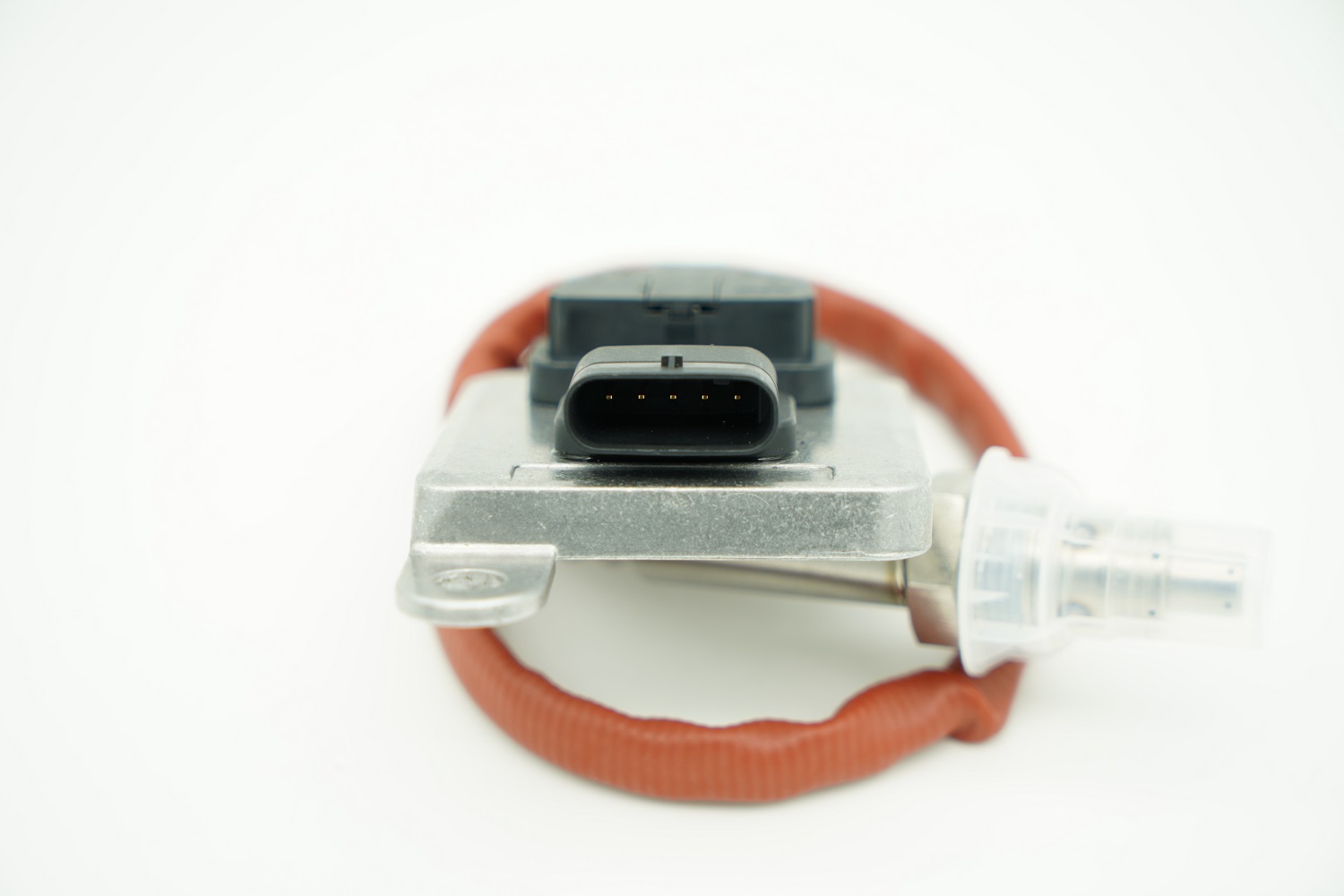

BMW 851166401 5WK96697 NOX sensor to replace faulty Continental part.
If you have did on-board computer scan and your car is showing error code about NOX sensor probe, it means that sensor and probe has failed.
NOX stands for Nitrogen Oxide.
Error cleaning may be required, but just once after fitting new NOX sensor, it can be done by yourself, no need to visit BMW dealer.
5WK96697 Sensor fits many different BMW cars: E90, E91, F10, F11, F30, F25 X3, E70 F15 X5, F01 and many other models.

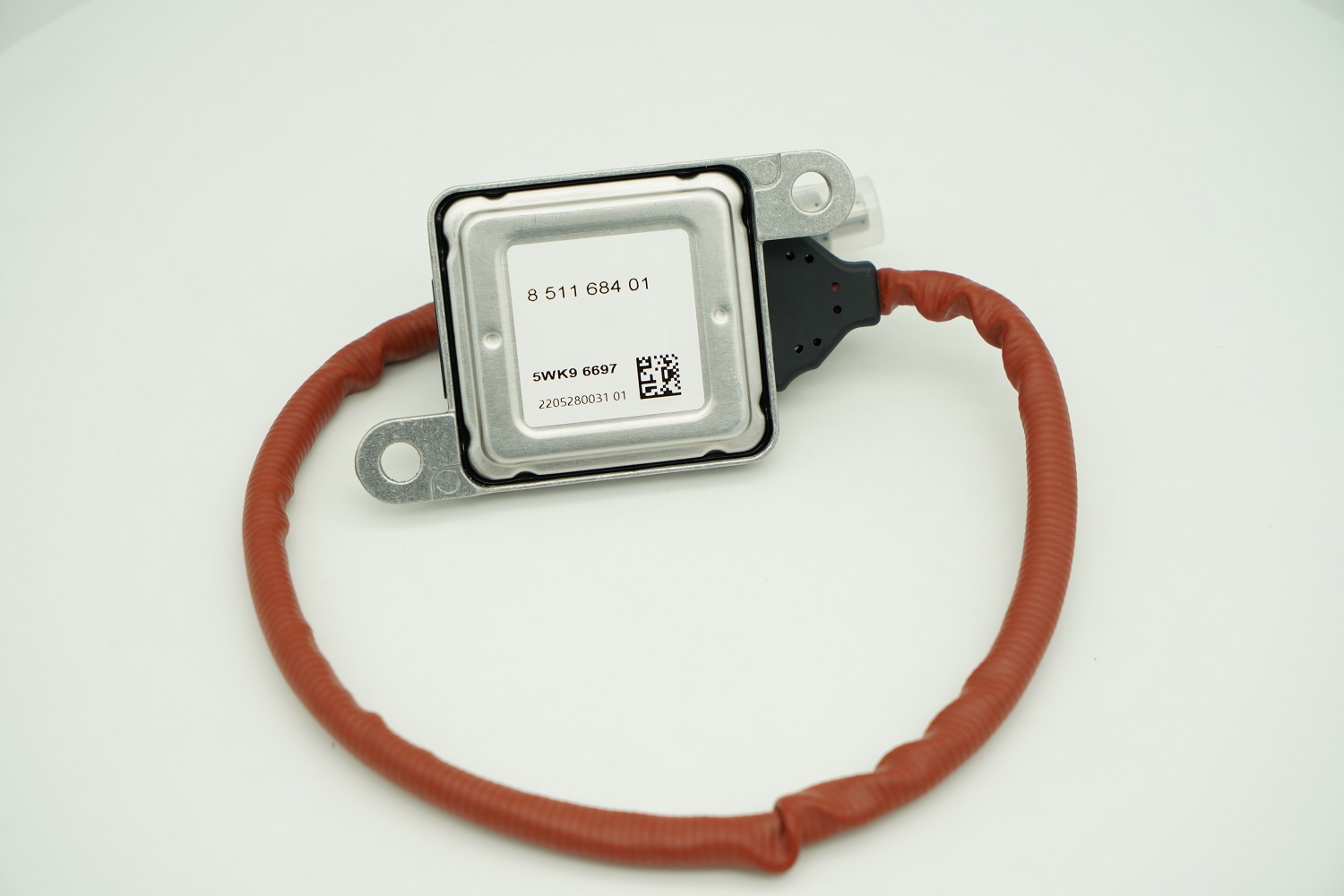

Information from original sticker: bmw ag continental 851166401.
Replacement sensor will save you a fortune and you will comply with enviromental laws again.
The most common diagnostic trouble codes dtc
2AEC Nitrogen Oxide Sensor Self Diagnostics
2AF0; 2B05 nitric oxide sensor, heating
2AF2; 2B06; 2B09 nitric oxide sensor, Lambda linear
2AF4; 2B07; 2B0A NOx sensor, electrical
2AF6; 2AFB; 2B0B nitric oxide sensor, Lambda binary
2AF9 nox sensor, nox signal: coast mode check
2EAE NOx sensor message missing (timeout)
30D6 nitric oxide sensor, plausibility
30D8 NOx sensor, Sensor damaged
30DA NOx sensor, heating time
30DC nitric oxide senor, heating
30DE NOx sensor – Lambdaprobe before catalyst, Korrelation
30E0 NOx sensor, Offset
30E2 nitric oxide sensor, thrust test
30E4 nitric oxide sensor, aging
30E6 nitric oxide sensor, dynamics
BMW part numbers:
- 851166401
Continental part number:
- 5WK9 6697
- 5WK96697
More compatible oem part numbers
- 13628589844 858984401 5WK96697C
- 13628576469 857646901 5WK96697B
- 13628518789 851878901 5WK96697A
- 13627812528 781252802 5WK96639B
- 781252801 5WK96639A
- 13628511664
- 13628509719
BMW compatibility list:
- 3 Series E90 LCI Facelift 2008, 2009, 2010, 2011
- 3 Series E91 LCI Facelift 2008, 2009, 2010, 2011
- 3 Series F30 LCI Facelift 2014, 2015, 2016, 2017, 2018
- 3 Series F31 LCI Facelift 2015, 2016, 2017, 2018
- 5 Series F07 GT LCI 2012, 2013, 2014, 2015, 2016, 2017
- 5 Series F10 LCI Facelift 2012, 2013, 2014, 2015, 2016
- 5 Series F11 LCI Facelift 2013, 2014, 2015, 2016, 2017
- 7 Series F01 LCI Facelift 2013, 2014, 2015
- X3 F25 2013, 2014, 2015, 2016
- X5 E70 2007, 2008, 2009, 2010
- X5 E70 LCI Facelift 2010, 2011, 2012, 2013
- X5 F15 2012, 2013, 2014, 2015, 2016, 2017, 2018
- X6 F16 2013, 2014, 2015, 2016, 2017, 2018
